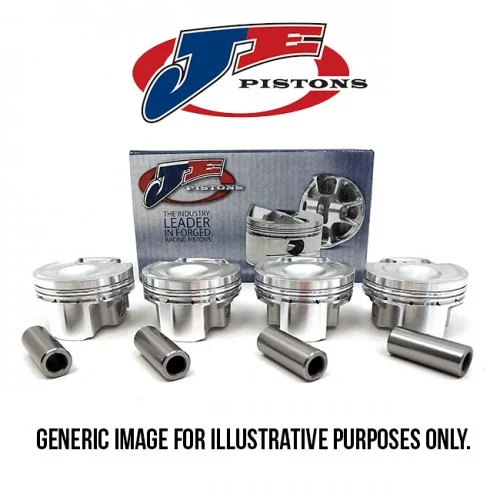

JE PISTONS Set 4 83mm

Description

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports. Bore (in) 3.268 Bore (mm) 83. Top Compression Ring Thickness 0.0400 Second Compression Ring Thickness 0.0480 Oil Ring Thickness 0.111 Forging Type FSR Volume (cc) -7.80 Series JE Pistons Piston Head Type Inv Dome/Dish Pin Diameter (IN) 0.905 Compression Height 1.165 Make AUDI / VOLKSWAGEN Wrist Pin Style – floating or press fit Floating Wall Type CHAMFERED Wall Thickness (IN) 0.180 Ringset Part Number JG1001-3268 Ring Brand ProSeal Ringset Included Yes Retainer Thickness 0.073 Retainer Lock Style Wire Lock Retainer Lock Part Number 905-073-MW Retainer Diameter (IN) 0.905 Replacement Single Piston 353860S Piston Pin Inside Diameter 0.545 Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED Piston Material 2618 Piston Pin Length (IN) 2.250 Pin Offset Yes Pin Brand JE Pistons Pin Part Number 905-2250-18-51C Pin Included Yes Pin Diameter (mm) 23.00 Oil Rail Support Included No Deck Clearance 0.000 Brand JE Pistons Fitment Car | 2014 | Audi | A4 Quattro Car | 2016 | Audi | A4 Quattro Car | 2016 | Audi | TT Quattro Car | 2017 | Audi | TT Quattro Car | 2014 | Audi | A4 Car | 2015 | Audi | A4 Quattro Truck | 2016 | Audi | Q3 Quattro Car | 2015 | Audi | A4 Truck | 2016 | Audi | Q5 Truck | 2017 | Audi | Q5 Car | 2016 | Audi | A3 Quattro Car | 2015 | Audi | A3 Quattro Car | 2018 | Audi | A3 Quattro Car | 2017 | Audi | A3 Quattro AUDI / VOLKSWAGEN|2.0T TSI – 23MM PIN – NEW FSR SERIES
